Brass full bore ball valve
Feature Description: NO: 343
working environment:
● Medium (water): 0 ° C to 150 ° C
● Medium (gas): -10 ° C to 150 ° C
TECHNICAL PARAMETERS
Brass full bore ball valve
Size: DN008 - 1/4" to DN100 - 4"
Internal thread / internal thread (thread standard ISO 228/1)
Design standard complies with MSS-SP110
The airtight test standard complies with EN12266-1
Explosion-proof valve stem
Adjustable packing

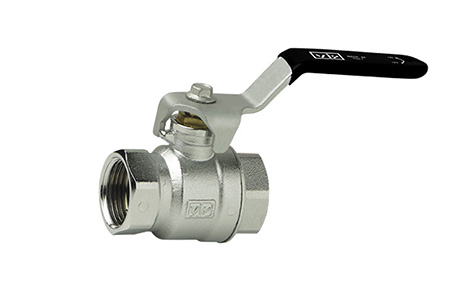

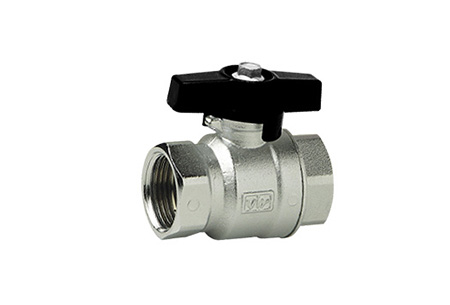

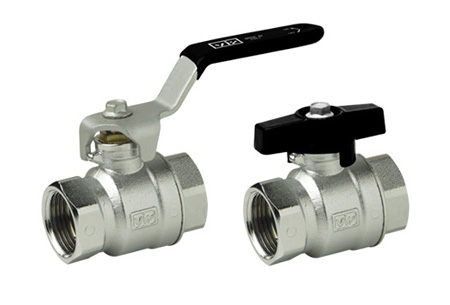

Conventional handle or butterfly handle (when size DN ≤ 50)
Conforms to EU CE, French ACS, Russian GOST and UK WRAS standards
For sizes DN ≤ 50 (pressure PN40), the applicable temperature can reach 95 ° C; when the temperature exceeds 95 ° C, the applicable pressure is PN25
When the size is DN≥65 (pressure is PN25), the applicable temperature can reach 95°C; when the temperature exceeds 95°C, the applicable pressure is PN16.
working environment:
● Medium (water): 0 ° C to 150 ° C
● Medium (gas): -10 ° C to 150 ° C
