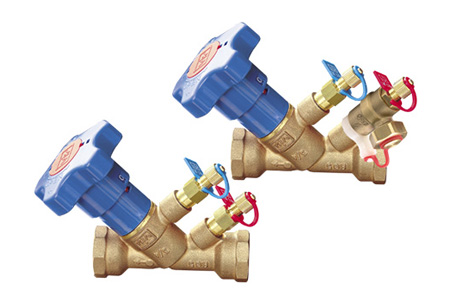

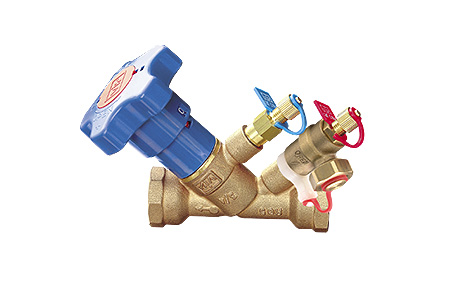

Bronze static balancing valve
Feature Description: NO: 950095059506
The following models are available:
● Model 9500 with 2 1/4" ISO7/1 Rp tapped holes
(for installing the test mouth)
● Model 9505, with test mouth
● Model 9506, high pressure test nozzle with drainage function
In line with the Russian Gost standard
TECHNICAL PARAMETERS
Bronze static balancing valve
Size: DN015 - 1/2" to DN050 - 2"
Internal thread / internal thread (thread standard ISO 228/1)
Design standard conforms to BS7350
Kv tolerance range is ±5% when the valve is fully open
(Test standard meets BS7350 requirements)
The following models are available:
● Model 9500 with 2 1/4" ISO7/1 Rp tapped holes
(for installing the test mouth)
● Model 9505, with test mouth
● Model 9506, high pressure test nozzle with drainage function
In line with the Russian Gost standard
PN25 (maximum pressure 25bar at 100°C and 20bar at 130°C)
working environment:
● Medium (water): -10 ° C to 130 ° C
Below 0 °C only for aqueous media (with antifreeze)
Above 100 °C only for aqueous media (with anti-boiling additive)
