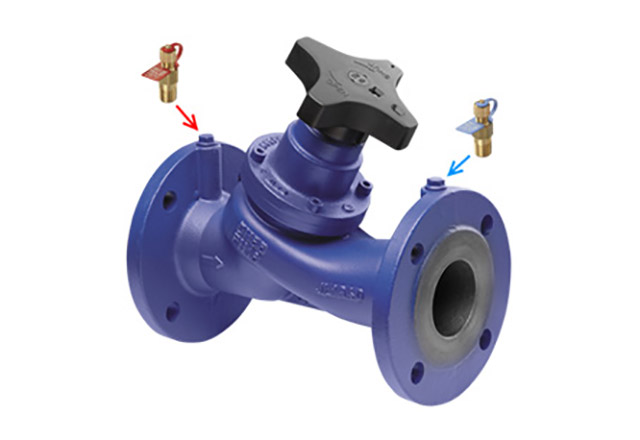

Cast iron static balancing valve
Feature Description: NO: 9555P
working environment:
● Medium (water): -10 ° C to 120 ° C
Below 0 °C only for aqueous media (with antifreeze)
Above 100 °C only for aqueous media (with anti-boiling additive)
TECHNICAL PARAMETERS
Cast iron static balancing valve (with stainless steel measuring orifice)
Flange PN16 complies with EN1092-2 (pre-DIN2533)
The length meets the requirements of EN558-1 series (pre-DIN3202 F1 standard)
Vernici Alkyd / Acrylic Single Layer Waterborne Coating (50-100μm)
Stainless steel measuring orifice plate, model 9450
For EN1092 PN16 flange
Kv tolerance range is ±5% when the valve is fully open
(Test standard complies with BS7350)
Size: DN065 - 2 1/2" to DN300 - 12"
In line with the Russian Gost standard
PN16
working environment:
● Medium (water): -10 ° C to 120 ° C
Below 0 °C only for aqueous media (with antifreeze)
Above 100 °C only for aqueous media (with anti-boiling additive)
