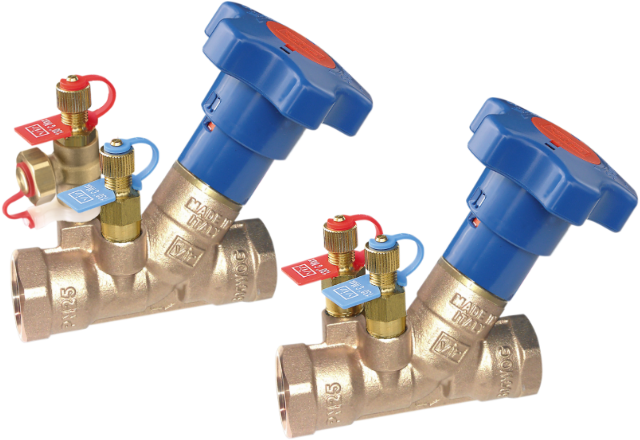

Fixed orifice bronze double regulating valve

Diameters from DN015 - ½" to DN050 - 2"

Threaded F/F (ISO 228/1 for DN015 and DN20, ISO 7/1 Rp above)

Olive and nut kit (O/N) for European copper tubing (EN1057) on request:

● DN015, kit for 15 mm pipe

● DN020, kit for 22 mm pipe

Design according to BS7350

Tolerance on nominal Kvs ±3% (test according to BS7350)

Available in the following versions:

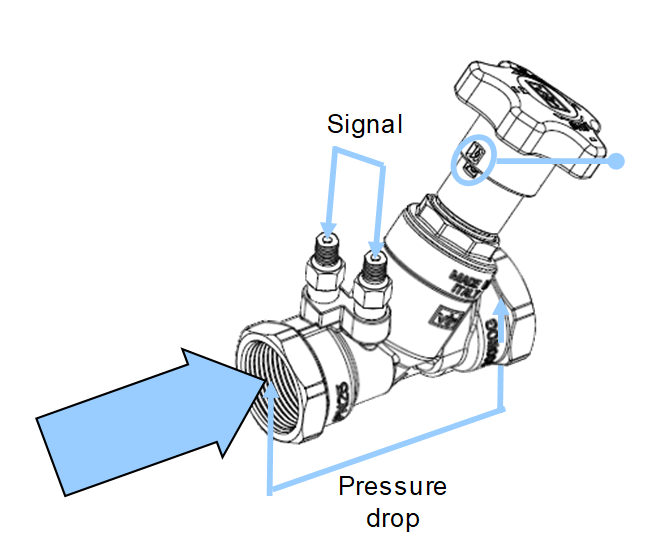

● Fig. 9585, with test points

● Fig. 9586, with test points (high pressure TP with drain)

TR CU 010 compliant

PN25 (Max 25bar up to 110°C, max 20bar above)

PN16 with O/N kit (Max 16bar up to 30°C, max 5bar at 120°C)

Free of CE marking (cat. according to Art. 4.3 Dir. 2014/68/EU)

Working conditions

● Suitable for: water, -10°C to +130°C (120°C with O/N)

   below 0°C only for water with added antifreeze fluids

   over 100°C only for water with added anti-boiling fluids

● Not suitable for: gases group 1 & 2, liquids group 1 (Dir. 2014/68/UE)
