Asiadon Cast Iorn Double reg.Valve with test points
Feature Description: NO: 9565P
TECHNICAL PARAMETERS

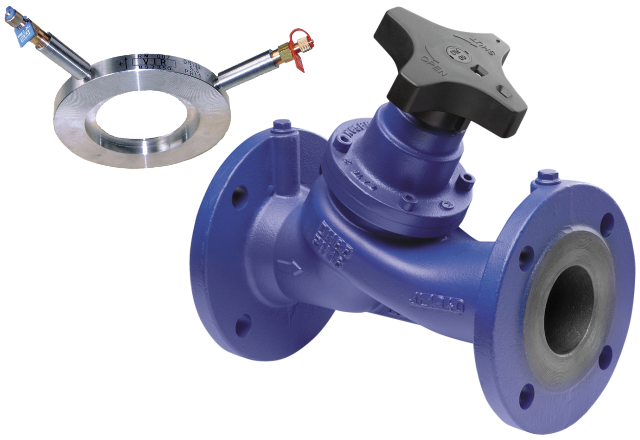

Variable orifice cast iron double regulating valve Fig. 9555P
Flanged PN16 according to EN1092-2 (ex DIN2533)
Lengths according to EN558-1 series 1 (ex DIN3202 F1)
Alkyd/acrylic single layer waterpaint coating (50-100μm)
Stainless steel Wafer metering station Fig. 9450
For EN1092 PN16 flanges
Tolerance on nominal Kvs ±5% (test according to BS7350)
Diameters from DN065 - 2½" to DN300 - 12"
TR CU 010 compliant
PN16
Free of CE marking (cat. according to Art. 4.3 Dir. 2014/68/EU)
Working conditions
● Water, -10°C to +110°
below 0°C only for water with added antifreeze fluids
over 100°C only for water with added anti-boiling fluids
● Not suitable for: gases group 1 & 2, liquids group 1 (Dir. 2014/68/UE)
