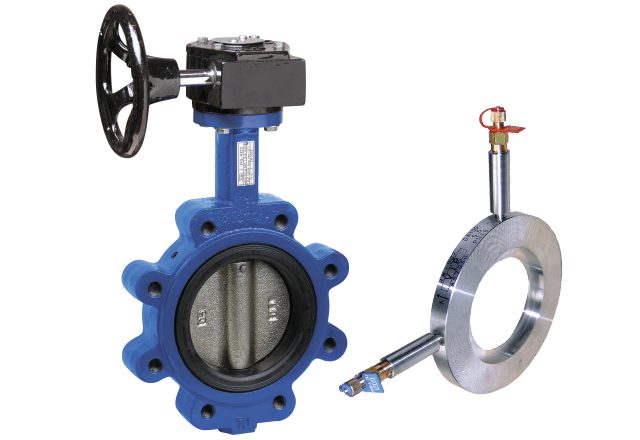

Asiadon Ductile iron Lug butterfly valve
Feature Description: NO: 50
TECHNICAL PARAMETERS
Ductile iron Lug butterfly valve
For EN1092 PN16 flanges
Lengths according to EN558-1 series 20 (ex DIN3202 K1)
Design according to EN593
Testing according to EN12266-1
Epoxy coating (min. 150μm)

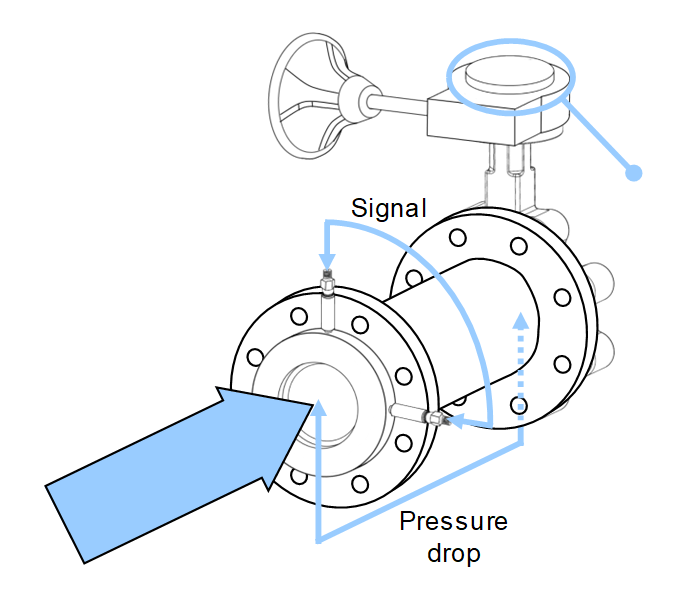

Stainless steel Wafer metering station Fig. 9450
For EN1092 PN16 flanges
Tolerance on nominal Kvs ±5%
Diameters from DN350 - 14" to DN600 - 24"
TR CU 010 compliant
PN10
Free of CE marking (cat. according to Art. 4.3 Dir. 2014/68/EU)
Working conditions
● Suitable for: water, -10°C to +110°
below 0°C only for water with added antifreeze fluids
over 100°C only for water with added anti-boiling fluids
● Not suitable for: gases group 1 & 2, liquids group 1 (Dir. 2014/68/UE)
