Variable orifice bronze double regulating valve

Diameters from DN010 - 3/8" to DN050 - 2"

Threaded F/F (ISO 228/1)

Design according to BS7350

Tolerance on nominal Kv for completely open valve ±5%

(see flow measurement section, test according to BS7350)

Available in the following versions:

● Fig. 9500, with plugged threaded drains (¼" ISO 7/1Rp)

   (allow later mounting of test points)

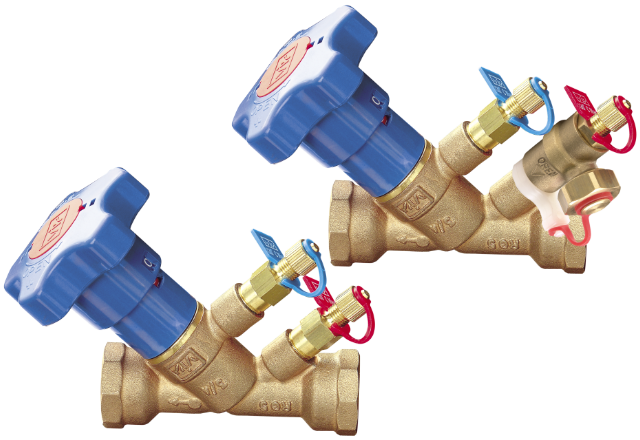

● Fig. 9505, with test points

● Fig. 9506, with test points (high pressure TP with drain)

TR CU 010 compliant

PN25 (Max 25bar up to 110°C, max 20bar above)

Free of CE marking (cat. according to Art. 4.3 Dir. 2014/68/EU)

Working conditions

● Suitable for: water, -10°C to +130°C

   below 0°C only for water with added antifreeze fluids

   over 100°C only for water with added anti-boiling fluids

● Not suitable for: gases group 1 & 2, liquids group 1 (Dir. 2014/68/UE)
