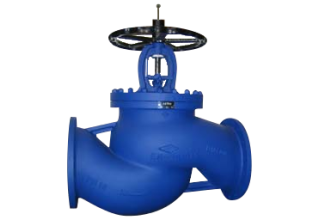

Asiadon Cast Iron balancing valve
Feature Description: NO: 9550T
TECHNICAL PARAMETERS
Variable orifice cast iron double regulating valve
Diameters from DN350 - 14" to DN400 - 16"
Flanged PN16 according to EN1092-2 (ex DIN2533)
Lengths according to EN558-1 series 1 (ex DIN3202 F1)

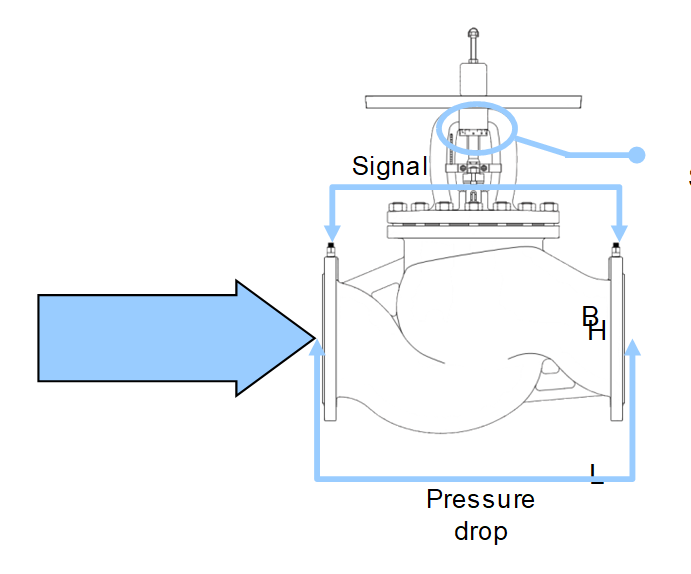

With plugged threaded drains (¼" ISO 7/1Rp) for test points
Test points available on request
TR CU 010 compliant
PN16
Max ΔP 4,5bar for DN350, 3,5bar for DN400
CE marked (categorization according Dir. 2014/68/EU)
Working conditions
● Water, -10°C to +200°C
below 0°C only for water with added antifreeze fluids
over 100°C only for water with added anti-boiling fluids
● Not suitable for: gases group 1 & 2, liquids group 1 (Dir. 2014/68/UE)
