Feature Description: NO: 9405

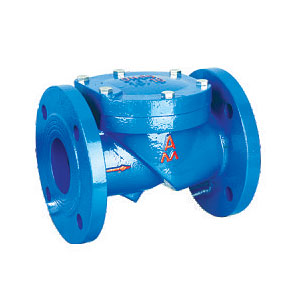

Asladon Rubber Disc Check Valve
1. Overview
Asiadon Rubber Disc Check Valve consists of body, cover and rubber disc,
The rubber disc consists of ductile cast iron disc framework, reinforced nylon mesh and rubber coverred outside, so the disc has a long life of open-close. The valve adopts full flow area design, so the pressure loss is very little and no sundries piling up in the body and it is easy to maintain this kind of valve.
The valve is used for water supply and drainage system and is installed on the outlet of the pump to prevent the fluid flowing backward and water hammer.
Also it can be installed at the inlet/outlet's bypass pipe to prevent the water in the cistern flowing backward into the pipe.
2. Performance Parameter
Norminal pressure: 1.0Mpa, 1.6Mpa
Working Medium: Water
Working temperature: 0-80 ℃
Flanged end: GB/T17241.6 standarad
3. Material:
Valve body: Grey cast iron
Valve Cover: Gret cast iron
Valve disc: Ductile cast iron+NBR

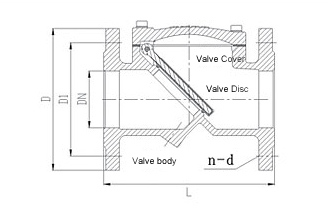

4. Outline Dimension
DN | No. | L | D | D1 | d | n | ||||
Pn 10 | Pn 16 | Pn 10 | Pn16 | Pn 10 | Pn 16 | Pn10 | Pn16 | |||
50 | SFCV-0050 | 203 | 165 | 165 | 125 | 125 | 19 | 19 | 4 | 4 |
65 | SFCV-0065 | 216 | 185 | 185 | 145 | 145 | 19 | 19 | 4 | 4 |
80 | SFCV-0080 | 241 | 200 | 200 | 160 | 160 | 19 | 19 | 8 | 8 |
100 | SFCV-0100 | 292 | 220 | 220 | 180 | 180 | 19 | 19 | 8 | 8 |
125 | SFCV-0125 | 330 | 250 | 250 | 210 | 210 | 19 | 19 | 8 | 8 |
150 | SFCV-0150 | 356 | 285 | 285 | 240 | 240 | 23 | 23 | 8 | 8 |
200 | SFCV-0200 | 430 | 340 | 340 | 295 | 295 | 23 | 23 | 8 | 12 |
250 | SFCV-0250 | 530 | 395 | 405 | 350 | 355 | 23 | 26 | 12 | 12 |
300 | SFCV-0300 | 610 | 455 | 460 | 400 | 410 | 23 | 26 | 12 | 12 |
