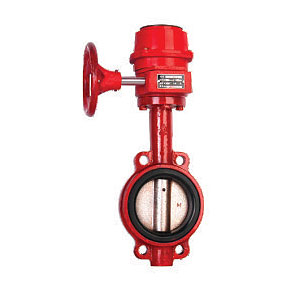

Asiadon Signal Butterfly Valve
Feature Description: NO: 9803S
TECHNICAL PARAMETERS
Outline Dimension
| DN | A | D1 | C | D | E | F | G | H |
| 50 | 50 | 125 | 42 | 162 | 81.5 | 312 | 150 | 130 |
| 65 | 65 | 145 | 45 | 178 | 89 | 328 | 150 | 130 |
| 80 | 80 | 160 | 45 | 182.5 | 96.5 | 332 | 150 | 130 |
| 100 | 100 | 180 | 52 | 206 | 114 | 356 | 150 | 130 |
| 125 | 125 | 210 | 54 | 210 | 127 | 360 | 150 | 130 |
| 150 | 150 | 240 | 56 | 223 | 139 | 373 | 150 | 130 |
| 200 | 200 | 295 | 60 | 260 | 175 | 410 | 300 | 200 |
