BRASS MULTI-JET ROTARY VANE WHEEL WET-DIAL TYPE COLD WATER METER LXSG-15E2 ~LXSG-50E2

APPLICATION:

This range of water meter is used to measure the total quantity of cold (hot) potable water which consumed in household or a resident unit passing through the pipeline.Compliance with Standard: Technical data conforms to ISO4064 R160 Standard for Horizontal installation

PRODUCT FEATURE:

*Multi-jet, Rotary vane wheel type

*Dry-dial, Magnetic drive, Resistance to exterior magnetic interference .*Selected high quality materials for steady, reliable characteristic& good
looking.

*Vacuum sealed register ensures the dial kept free from fog and keep the.

*reading clear in a long term service.

*Measuring accuracy conform to ISO4064 R160 Standard.

*Universal use .Easy for interchange and maintenance.

*Brass material (Cu is around57).

MAXIMUM PERMISSIBLE ERROR

In the lower zone from Qmin inclusive up to but excluding Qt is±5%

In the upper zone from Qt inclusive up to and including Qs is±2%

(Hot water meter±3%)

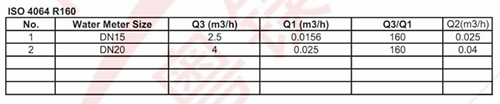

MAIN TECHNICAL DATA：

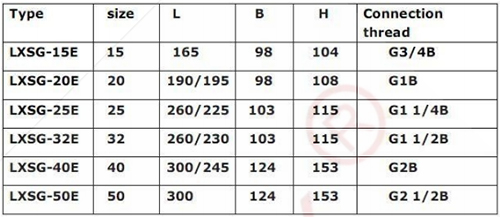

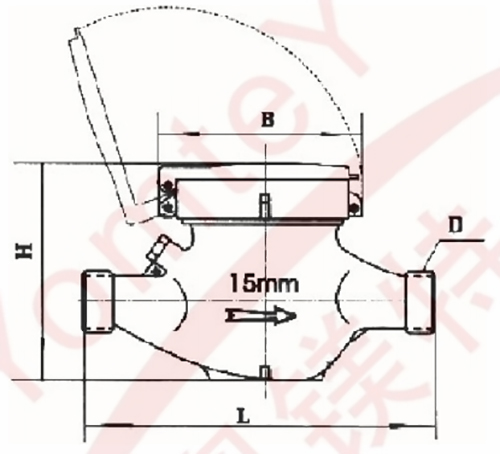

DIMENSIONS AND WEIGHT：

WORKING CONDITION

Water temperature: :0℃≤t≤40℃(For cold water meter)

Water pressure: 1. :≤1.0<MPa2. ≤1.6<MPa

INSTALLATION REQUIREMENTS:
1. Meter should be installed in horizontal position with register face
upwards.

2. Pipeline must be flushed before installation .

3. The meter should be constantly full of water during operation.

OUTPUT PULSE INFORMATION:

Transmission component: reed switch sensor Working voltage range: 3V~15V Sensor is sealed with special material to ensure the stability and
reliability during working. Double sensors equipped, match to data acquire equipment to test the interference by magnetic field outside.

Transmitting distance : the max distance from transmission water meter to data acquire equipment is 120m The pulse constant is 10pulse/m³ or 100pulse/m³
