LXLC-50~500 Removable mechanism type Woltman water meter
Usage: mainly used to record the total amount of tap water flowing through the pipe.（Water meters not suitable for dirty or corrosive water.）
Feature：
1.The water meter is detachable and the meter does not have to be removed from the pipe. Repairable mechanism ensures easy maintenace and removable.
2.The measuring mechanism has good universality, spare parts, magnetic drive.
3.Reliable sensitive metrology and low pressure loss.
Working condition：
Temperature tank：T30
Water pressure tank： MAP10
WOLTMAN WATER METERS:
50mm-200mm（2”-8”）
A removable mechanism type woltman water meter with magnetic dirve and vacuum sealed register.
STANDARDS:
Conforms to ISO4064, Class-B
APPLICATION:
Water Distribution Network industrial/Commercial water supply
FEATURES:
⚫ Leak proof and sealed totalizer.
⚫ Magnetic drive.
⚫ Repairable mechanism ensures easy maintenance.
⚫ Totalizer protected by metallic cover.
⚫ Reliable sensitive metrology and low-pressure loss.
OPTIONS:
⚫ Hot water meters (<90℃)
⚫ Pulse output water meter.
⚫ Water meter with EEC Mark
⚫ Water meters suitable for ETP/Dirty water.
⚫ Dirt Box (50mm to 500mm)

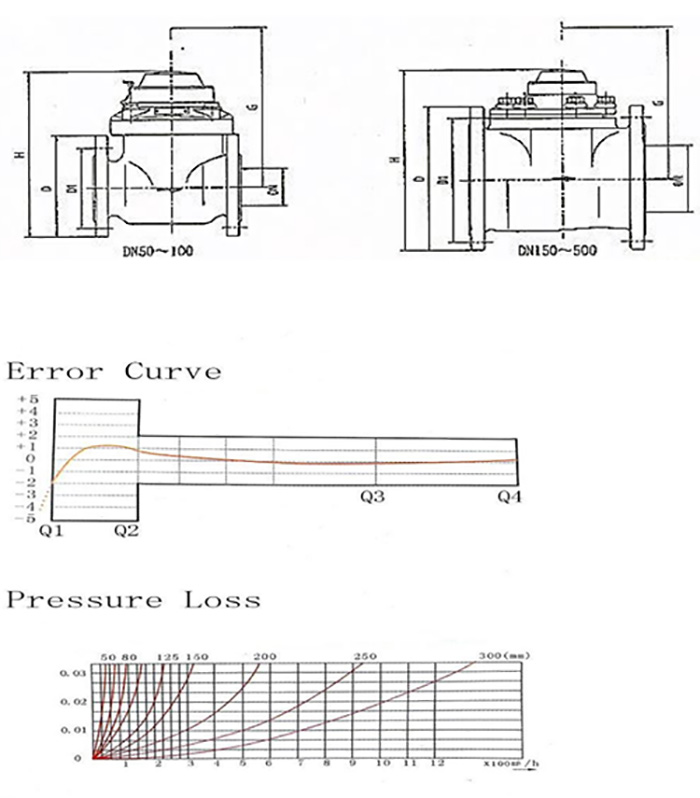

METROLOGICAL PERFORMANCE:

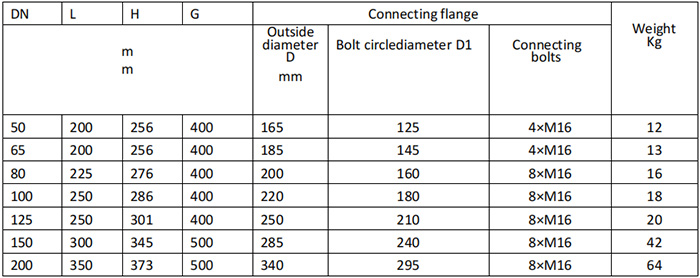

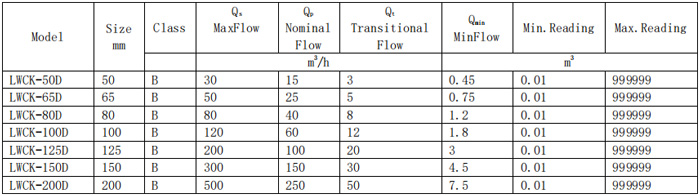

Technical Specifications
Maximun permissible error：
a) In the lower zone: Q1≤Q≤Q2 is ±5％
b) In the upper zone:Q2≤Q≤Q4 is ±2
